EDU System | Passive Modules |
AC Capacitive Loads
PEM.EDU.CAP.ACFILM.01. A. XXXX.XXXXX
Description:
PEModule PLUGY EDUAC capacitive load module includes 6X high Performance AC film capacitors for different configuration and connection coverage different applications.
Main Features:
- Compatibility: AC three-phase and single- phase capacitive loads and low pass filters.
- Connectivity: Safety-shouldered Power Banana connectors.

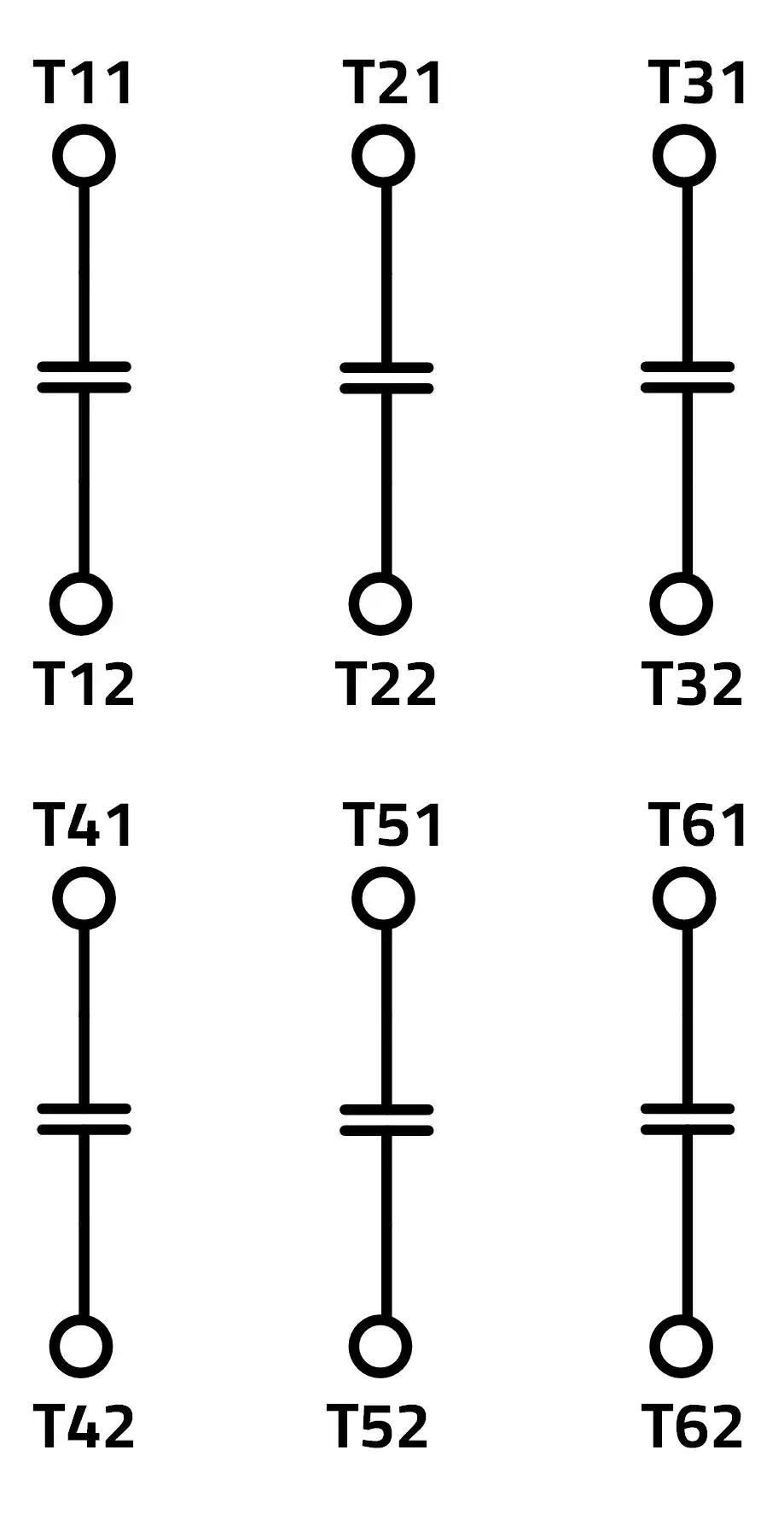

- Configuration: Six separate AC film capacitors.
- Visibility: Transparent back cover.
- Maintenance: Upgradable and replaceable components.
- Durability: Heavy-duty, compact steel enclosure.
Follow us
EDU Module Specifications
EDU Module Specifications
| PLUGY SYSTEM Part no. | C (μF) | VAC Max(V) |
|---|---|---|
| PEM.EDU.CAP.ACFILM.01. A. 0450.00010 | 10 | 450 |
| PEM.EDU.CAP.ACFILM.01. A. 0450.00015 | 15 | 450 |
| PEM.EDU.CAP.ACFILM.01. A. 0450.00020 | 20 | 450 |
| PEM.EDU.CAP.ACFILM.01. A. 0450.00030 | 30 | 450 |
| PEM.EDU.CAP.ACFILM.01. A. 0450.00040 | 40 | 450 |
| PEM.EDU.CAP.ACFILM.01. A. 0450.00005 | 5 | 450 |
| PEM.EDU.CAP.ACFILM.01. A. 0450.00007 | 7.5 | 450 |
* Not recommend for series connection (voltage balancing issues)
